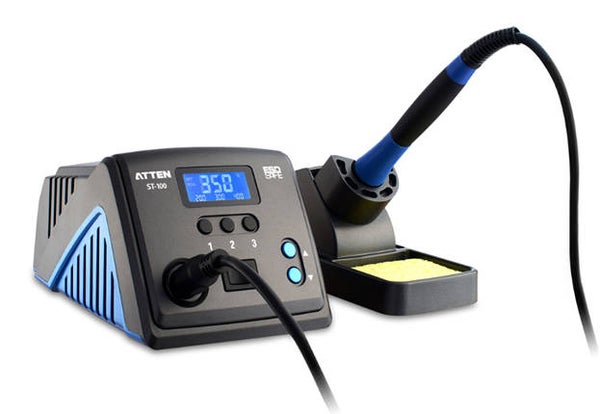

ATTEN ST-100 100W Soldering Station
The ATTEN ST-100 100W Soldering Station is an intelligent digital soldering station with 100 W heating element for temperatures from 150 - 450 °C. Its light handle is suitable for long-time operations and the stabilized and accurate temperature supports smooth operation.
● Smart recognition of working or non-working status.
● Automatic standby, shutdown with smart time setting.
● High quality silver alloy heater to achieve quicker heating-up
● Temperature locking.
● Beep alarm function available.
● Temperature read out in ℃ and ℉
● MCU controlled temperature calibration.
● Simulate bar indicating heating up status.
● User-friendly menu enables system setting easier.
● Separate iron stand to save room and to make easier deposit.
● New design with LCD display screen making control visualization.
● Buttons(1,2,3) for pre-setting or switching frequently used temperature.
● Low-voltage heater separated from power supply to keep soldering work safer.
● Soldering tip designed separate from heater and using
● Exchangeable AT800 series to save use-cost.
| Specifications: | Package list: | Standard Packing: |
|---|---|---|
| Voltage: AC (100V/110V/120V||220V/230V/240V) 50/60Hz(Optional) | Main Unit: 1 Unit | Inner box: 31.5x27x15.2(cm) |
| Power：100W | Handle set : 1 PCS | N.W.: 2.68kg |
| Heater voltage：24VAC | Iron stand: 1 PCS | G.W.: 2.95kg |
| Temperature range：150~480°C | AC cord: 1 PCS | Carton: 6 PCS/Carton |
| Temperature offset range：±50°C | Manual: 1 Copy | Size: 55.5x33x48(cm) |
| Temperature stability：±2°C (in still air, no load) | Cleaning sponge: 1 PCS | N.W.: 17.9kg |
| Temperature adjustment：5 digits (Default)/1 digit (Fine-tuning) | G.W.: 19.0kg | |
| Automatic stand-by time：1-120 minutes （Adjustable） | ||
| Automatic shutdown time：1-120 minutes （Adjustable） | ||
| Heater：100W Silver alloy heater | ||
| Tip-to-ground impedance：< 2Ω | ||
| Tip-to-ground voltage：< 2mV |
